FOXWELL NT710 OBD2 Bidirectional Scanner Tool Car All System Diagnostic Tablet

30+ Service Reset Functions
1. Oil Light Reset - Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.
2. ABS Bleeding - Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only support the vehicles that can do AUTO bleeding.
3. Battery Matching - Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.
4. D-P-F Regeneration - Only for diesel 12V vehicle. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.
5. SAS Reset - Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.
6. Injector Coding - Write the new injector code into the car system for correct cylinder injection quantity. -For gasoline or diesel 12V vehicle.
7. EPB Reset - Help replace and reset the brake pad. This function is required for maintenance of electronic braking system's safety and efficiency.
8. TPSReset - When the motion range is not known, the E~U simply has no idea where to set the throttle. The E~U must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the E~U learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).
9. Replace Airbag E~U Module - Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the E~U and let it know the fault has been repaired.
10. A/F Reset - This is utility allows for the learnt Air Fuel Ration (AFR) to be re-initialized.The Air/Fuel ratio (A/F) is the mixture ratio or percentage of air and furl dilivered to the engine by the fuel system, A/F adaptation to meet the ideal air-fuel ratio of different fuel ensure engine best performance.
Else: Seat Match/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door etc.





Full OBD2 Functions (Emission Related）
The diagnostic scanner featuring the complete 10 functions of OBDII test with Live PCM Data Stream in graphics formats, Read/Clear DTCs and do smog tests, I/M readiness and O2 sensor tests, read freeze frame data, EVAP system test, retrieves vehicle info, Malfunction Indicator Light (MIL), Real time battery voltage and more.





Auto VIN Scan
One-Click Automatically Read Vehicle Information will auto detect the vehicle information and display vehicle information to save your time of manually entered,more convenience for you.

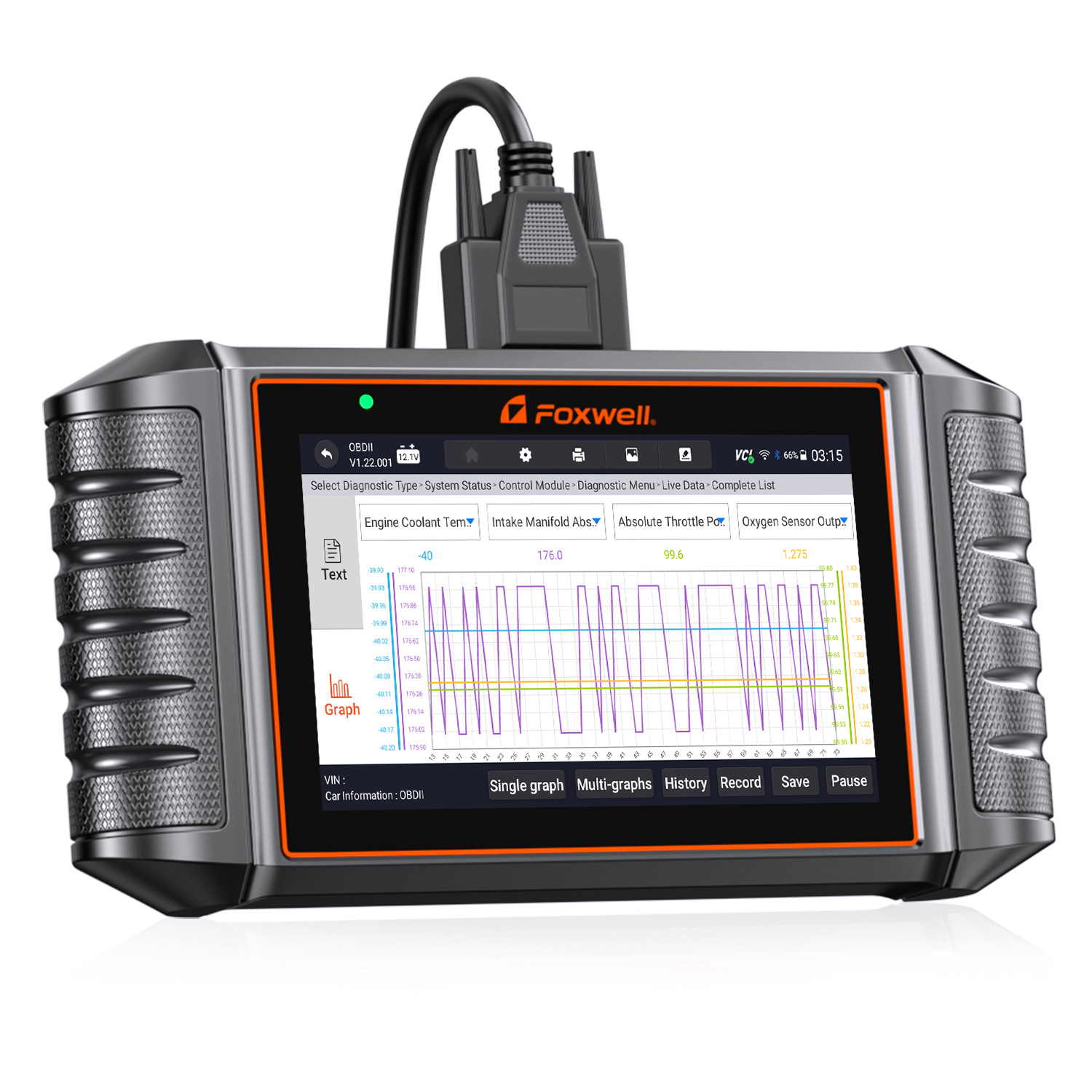

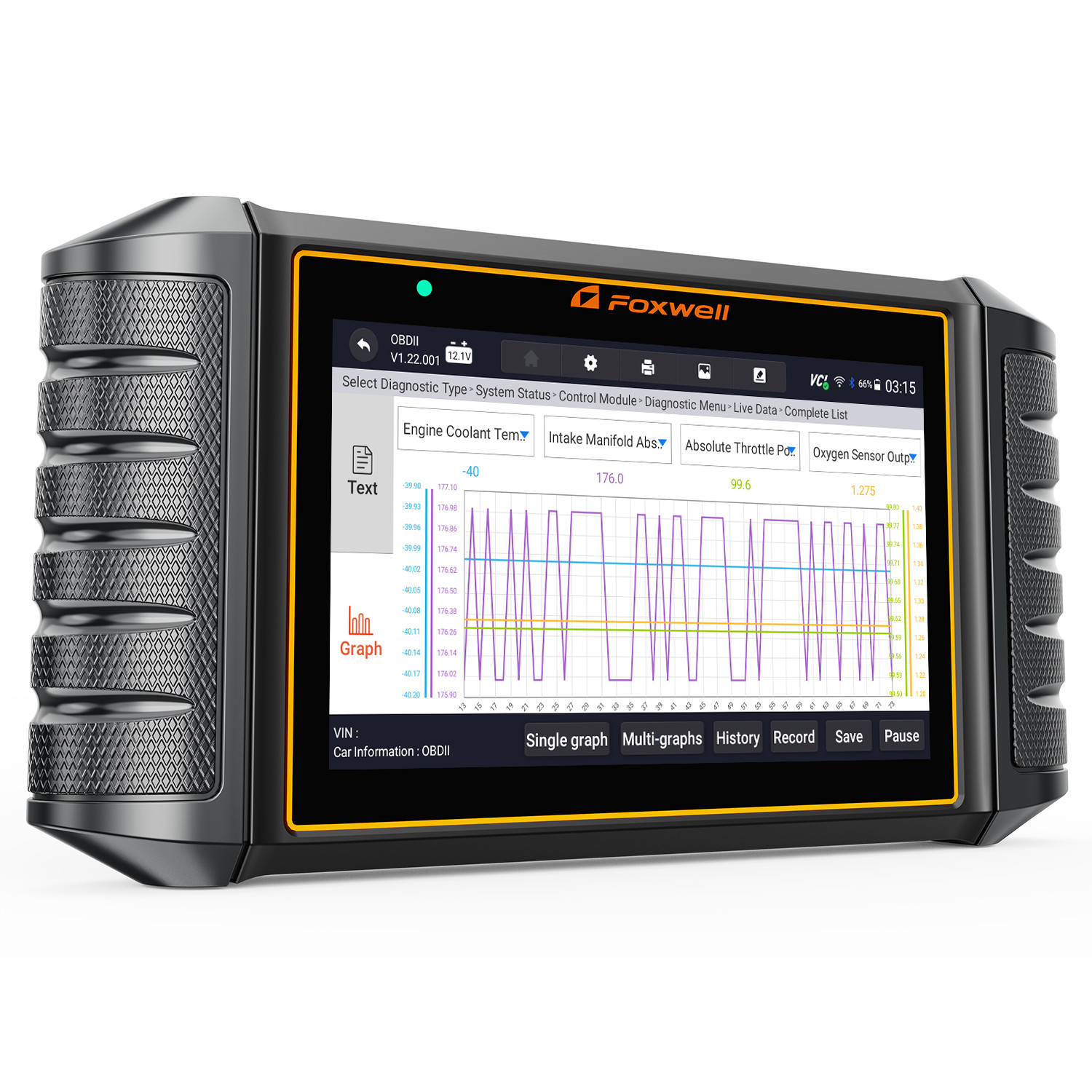

4-in-1 Live Data Multi-Graphs
Clearly displaying real-time data in text and graph allows you to view multiple graphs simultaneously or merge 4 graphs in one for comparison.
Bluetooth Share/Send Health Reports
You can transmit the data reports via E-mail/Bluetooth/Wifi to share or send for save its. Not like the old versions car scanner, must need to connect the printer to get the reports.
Online Feedback and Remote Support
You can input your issues and submit them online to get the professional troubleshooting from Foxwell. Also can be controlled remote by foxwell technical engineers or the user's friends to handle the problems during diagnostic process to save your time to communicate back and forth.
Online Update Free Lifetime
Wifi updating technology is for you to get the newly software anytime. What's more,no need any extra fee, no like other scan tools only support One Year for Free.





How to Select & Update Software?
1.  Go to "VCI Manage" to upgrade the firmware,
2.  Then click the “Diagnostic” menu to enter the system.  After entering, the page will prompt: "You are free to choose one vehicle make as the first time use,continue", click "Yes".
3.  Then log in to the FOXWELL account and activate the serial number
4.  Then enter the model menu, select “XXX” software.
5. after finish the software select, you can go to “Update” page, it will shows the "XXX " software which you selected.
